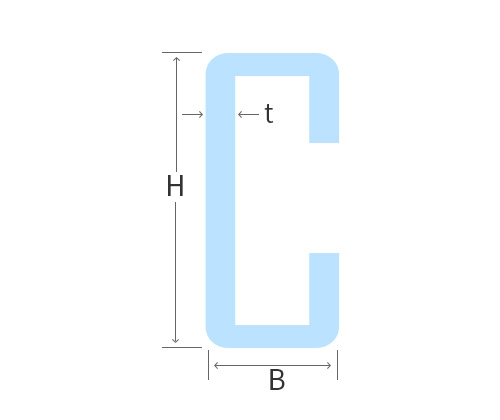

C형강
(KS D 3503, 3515/3502)
| 표준단면치수Standard Sectional Dimension(mm) |
단위중량Unit Weight (kg/m) |
표면적Paint Area (m²/ton) |
단면적Sectional Area (cm²) |
단면계수Modulus of Section(cm³) |
| H x B |
C |
t(mm) |
W |
S |
A |
Zx |
Zy |
| 60x30 |
10 |
1.6 |
1.63 |
171.779 |
2.072 |
3.88 |
1.32 |
| 10 |
2 |
1.99 |
|
2.537 |
4.65 |
1.55 |
| 10 |
2.3 |
2.25 |
124.444 |
2.872 |
5.2 |
1.71 |
| 75x45 |
15 |
1.6 |
2.32 |
168.103 |
2.952 |
7.24 |
3.31 |
| 15 |
2 |
2.86 |
136.364 |
3.637 |
8.79 |
3.76 |
| 15 |
2.3 |
3.25 |
120 |
4.137 |
9.9 |
4.24 |
| 90x45 |
20 |
2 |
3.25 |
135.385 |
4.137 |
11.3 |
4.12 |
| 20 |
2.3 |
3.7 |
118.919 |
4.712 |
13 |
5.14 |
| 20 |
3.2 |
5 |
88 |
6.367 |
17.1 |
6.57 |
| 90x50 |
20 |
3.2 |
5.25 |
87.619 |
6.687 |
18.4 |
7.71 |
| 100x50 |
20 |
1.6 |
2.88 |
166.667 |
3.672 |
11.7 |
4.47 |
| 20 |
2 |
3.56 |
134.331 |
4.537 |
14.3 |
5.4 |
| 20 |
2.3 |
4.06 |
118.227 |
5.172 |
16.1 |
6.06 |
| 20 |
2.6 |
4.55 |
105.495 |
5.796 |
17.9 |
6.68 |
| 20 |
3.2 |
5.5 |
87.273 |
7.007 |
21.3 |
7.81 |
| 125x50 |
20 |
2 |
3.95 |
134.177 |
5.037 |
19.7 |
5.18 |
| 20 |
2.3 |
4.51 |
117.517 |
5.747 |
21.9 |
6.22 |
| 20 |
3.2 |
6.13 |
86.46 |
7.807 |
29 |
8.02 |
| 150x50 |
20 |
3.2 |
6.76 |
85.799 |
8.607 |
37.4 |
8.19 |
| 150x65 |
20 |
3.2 |
7.51 |
85.22 |
9.567 |
44.3 |
12.2 |
| 20 |
4 |
9.22 |
69.414 |
11.75 |
53.5 |
14.5 |
| 20 |
4.5 |
10.3 |
62.136 |
13.07 |
58.8 |
15.7 |
| 150x75 |
25 |
3.2 |
8.27 |
84.643 |
10.53 |
50 |
17.3 |
| 200x75 |
20 |
3.2 |
9.27 |
84.142 |
11.81 |
71.6 |
15.8 |
| 20 |
4.5 |
12.7 |
61.417 |
16.22 |
96.3 |
20.6 |
| 20 |
5 |
14 |
55.714 |
17.86 |
105 |
22.1 |
| 25 |
3.2 |
9.52 |
84.032 |
12.13 |
73.6 |
17.8 |
| 25 |
4 |
11.7 |
68.376 |
14.95 |
89.5 |
21.3 |
| 25 |
4.5 |
13.1 |
61.069 |
16.67 |
99 |
23.3 |
| 280x80 |
20 |
4 |
13.3 |
60.15 |
16.95 |
123 |
21.4 |
| 20 |
4.5 |
14.9 |
60.403 |
18.92 |
137 |
23.4 |
데크플레이트
| 품명(Type) |
KSD3602 |
두께t mm |
제품중량 |
| H.R Plate |
아연도금강판 |
| CGI |
HGI |
| (kg/m) |
(kg/m²) |
(kg/m) |
(kg/m²) |
(kg/m) |
(kg/m²) |
| GDP |
ALK12 |
1.2 |
9.38 |
15.64 |
9.56 |
15.9 |
9.76 |
16.3 |
| 600-75 |
ALK16 |
1.6 |
12.4 |
20.67 |
12.6 |
21 |
12.8 |
1.3 |
|
ALK23 |
2.3 |
17.7 |
29.5 |
17.9 |
29.8 |
18.1 |
30.2 |
| GDP |
ALK10 |
1 |
8.55 |
12.4 |
8.75 |
12.68 |
8.96 |
12.99 |
| 690-75 |
ALK12 |
1.2 |
10.2 |
14.78 |
10.4 |
15.07 |
10.6 |
15.36 |
|
ALK16 |
1.6 |
13.6 |
19.71 |
13.8 |
20 |
14 |
20.29 |
|
ALK23 |
2.3 |
19.3 |
27.97 |
19.5 |
28.26 |
19.7 |
28.55 |
| GDP |
ALK12 |
1.2 |
8.21 |
13.37 |
8.37 |
13.63 |
8.55 |
13.93 |
| 614-50 |
ALK16 |
1.6 |
10.9 |
17.75 |
11 |
17.92 |
11.2 |
18.24 |
|
ALK23 |
2.3 |
15.53 |
25.29 |
15.53 |
25.3 |
15.75 |
25.66 |
